Product Description

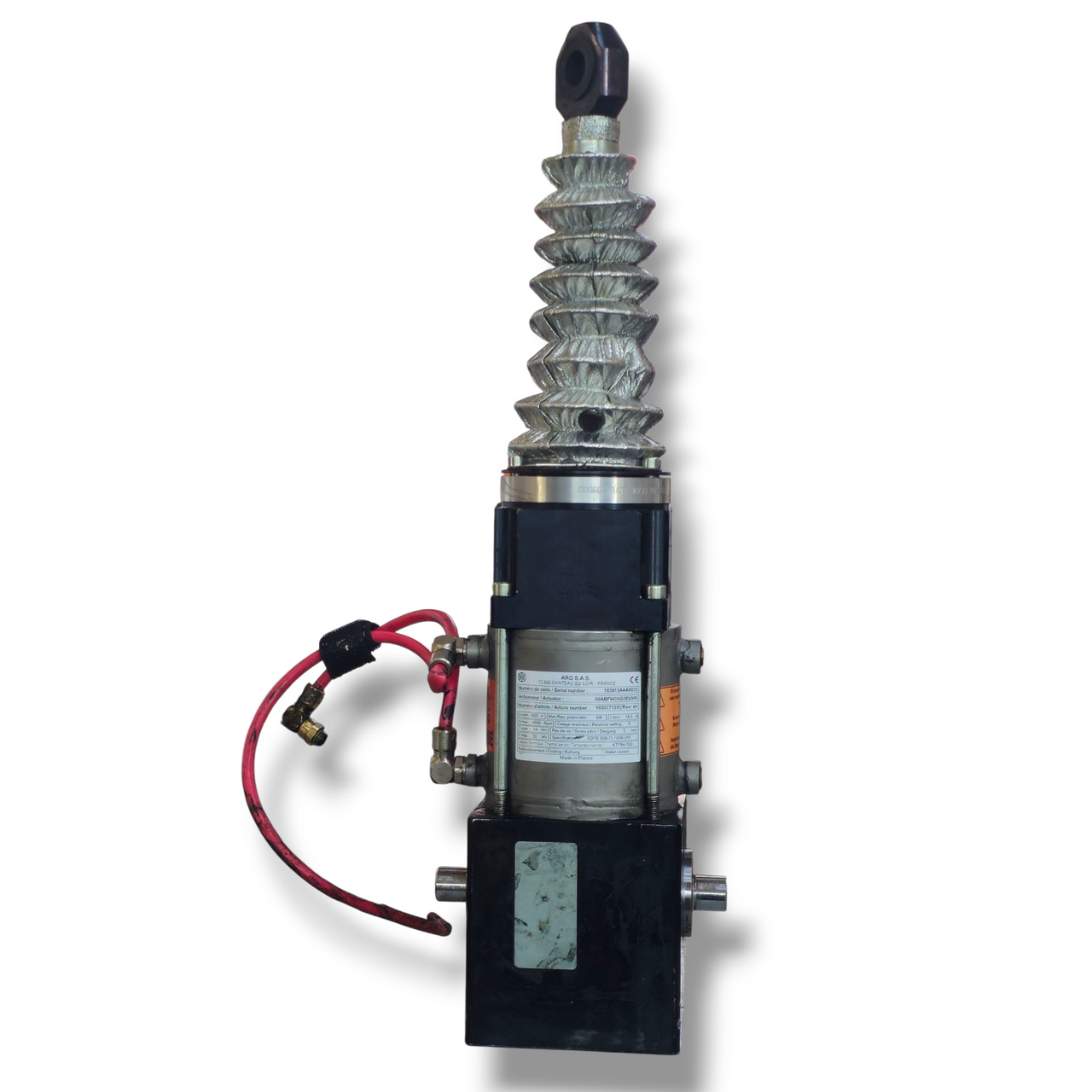

ARO S.A.S. 59ABFW05G2EUW6 Servo Actuator
High-Performance 20 kN Actuator for Robotic Spot Welding Guns
Product Overview
For sale is a high-technology **59ABFW05G2EUW6 servo gun actuator**, manufactured by ARO S.A.S. of France. This powerful, water-cooled unit is a critical component in modern robotic spot welding systems, providing far more precise, faster, and more programmable control of the weld force than traditional pneumatic systems.
It is the perfect choice for all robotic resistance welding applications that require high precision and repeatability, especially in the automotive industry. The unit has been tested, is in full working condition, and is ready to be integrated into your system.
Technical Specifications
| Brand | ARO S.A.S. |
|---|---|
| Actuator Model | 59ABFW05G2EUW6 |
| Article Number | 103077129 Rev: 01 |
| Serial Number | 183813AAA0033 |
| Max. Force (F max) | 20 kN (≈ 4496 lbf) |
| Nominal Voltage (U nom) | 600 V |
| Nominal Current (I nom) | 16.5 A |
| Max. Speed (N max) | 4500 Rpm |
| Nominal Torque (T nom) | 14 Nm |
| Screw Pitch | 5 mm |
| Cooling | Water Cooled |
| Thermal Sensor | KTY84-130 |
| Origin | Made in France |
